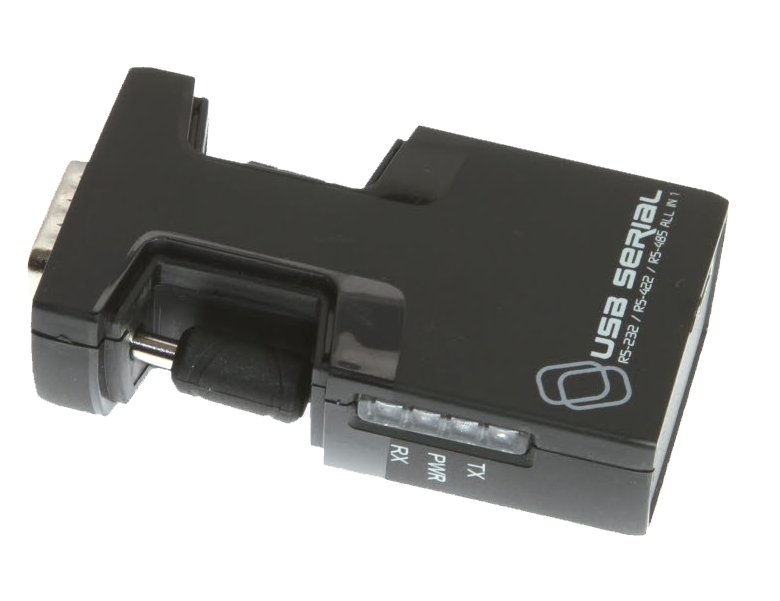

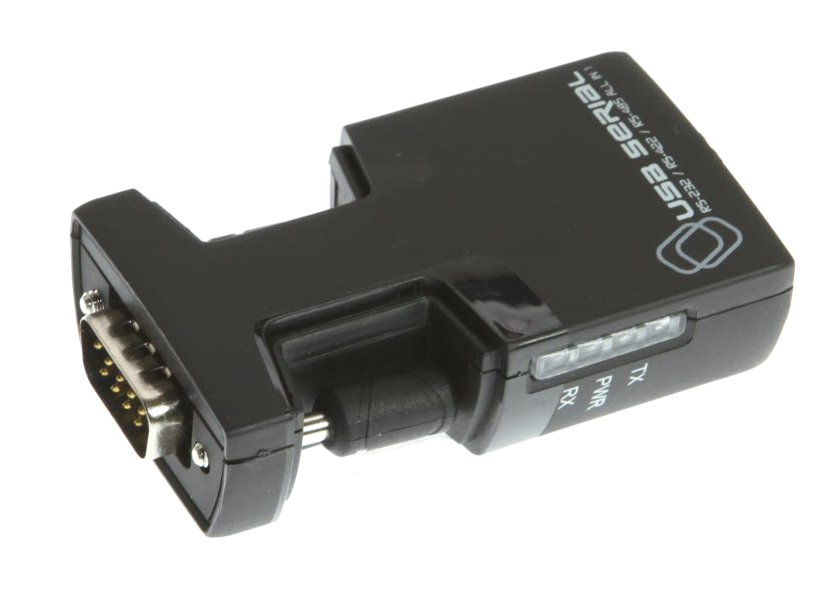

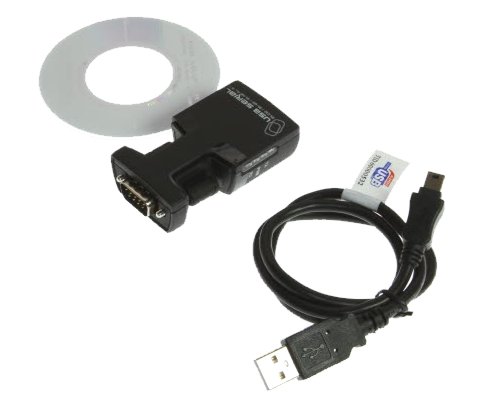

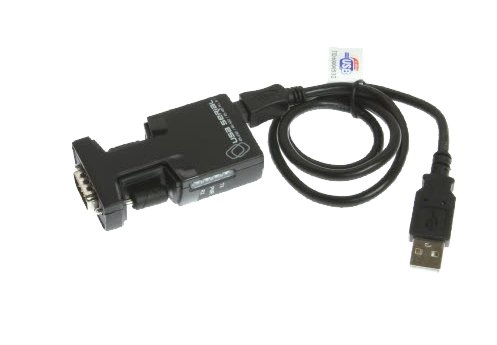

USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software



Short Description
USB Serial Adapter for Windows 8 and Windows 10 , DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
Mfg: USBGEAR
Sku: USB-234842RS
UPC: USB-234842RS
Color: Black
Size: Adapter
Weight: 1
Warranty: ONE YEAR
Qty. Discount:
    Buy 8 units at $38.88 each Buy 12 units at $37.89 each
Available: In Stock Yes
Price: $ 37.89
Qty:

Windows 2000 Windows 7 Windows 8 Windows 98SE Windows ME Windows XP
Ratings
Similar Products


Product Description
usb serial adapter for windows 7, this item has been fully supported by Microsoft since 2007

    USB Serial Adapter for Windows 8 and Windows 10 , DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software


    Not just a Serial Adapter, The Best Serial Adapter! The Difference between rs 232 rs 485 rs 422 is signal and the way the connection is wired. This particular FTDI USB rs232 converter offers an auto select feature distinguishing between the differences in the three signal types. All configuration and interface selections are handled through the FTDI USB rs232 driver eliminating the need for jumper selections. The FTDI USB to serial converter port selection is software configurable for rs-232, rs-422, and rs-485 signals allowing electrical settings to be maintained locally meaning it can be configured at one computer and deployed to others. This is the best serial adapter offering this kind of versatility. Buy cheap serial adapters, you get what you pay for, buy the Best and experience the benefits! DB-9 Version USB to RS-232 / RS-422 / RS-485 Adapter The USB to serial interface adapter offers an easy way to connect a DB9 serial device to a USB port. All configuration and electrical interface selections are handled through the driver, eliminating the need to open the enclosure to set jumpers or switches. The serial port is software configurable for RS-232, RS-422, and RS-485 with the electrical interface settings maintained locally, allowing the host computer to be repaired or upgraded without re configuring the serial port. Additionally, the adapter can be configured at one computer and deployed to other computers. Features Full compliance with the USB Specification 2.0 & 1.1 RS-232 / RS-422 / RS-485 ( Echo mode / Bias resister / Terminal resister ) set up by Windows application program Bus powered, no external power required Support 32 Node on the network High data rate up to 230 kbps ( RS-232 ) ~ 3 M Baud ( RS-422 or RS-485 ) 5kV HBM ESD Protected Compatible Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 and higher,(10-02-2014 Just tested this on Windows 10, works Perfectly) Windows Server 2003 / 2008 / 2008R2 , Win CE and Mac OS 8.6 , Linux 1.5.0 and higher Model No. DB-9 Male Pin Assignment RS-232 RS-422 RS-485 Pin No. Definition Definition Definition Chip FTDI 1 DCD TX- D- Data Rate RS-232 230 Kbps 2 RXD TX+ D+ RS-422 / RS-485 3 M Baud 3 TXD RX+ LED 3 4 DTR RX- Connector Host USB Type A Male 5 GND GND GND Device DB-9 Male 6 DSR RTS- Compliant USB Spec. 2.0 / 1.1 7 RTS RTS+ Housing Plastic 8 CTS CTS+ Dimension ( L x W x H ) 66 x 39 x 20 mm 9 RI CTS- User Guide

in_stockTech Notes

    DB-9 Male Pin Assignment RS-232 RS-422 RS-485 Pin No. Definition Definition Definition 1 DCD TX- D- 2 RXD TX+ D+ 3 TXD RX+ 4 DTR RX- 5 GND GND GND 6 DSR RTS- 7 RTS RTS+ 8 CTS CTS+ 9 RI CTS-

USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
USB Serial Adapter DB-9 Pro Grade FTDI USB to RS-232 / RS-422 / RS-485 Adapter Selectable via Software
